What is the installation angle limit of an inclined screw conveyor?

What is the installation angle limit of an inclined screw conveyor?

As a supplier of Screw Conveyor, I often receive inquiries from customers about the installation angle limit of inclined screw conveyors. This is a crucial topic as the installation angle significantly impacts the conveyor's performance, efficiency, and even its service life.

Understanding the Basics of Inclined Screw Conveyors

An inclined screw conveyor is a mechanical device used to transport bulk materials at an angle. It consists of a helical screw blade rotating within a trough or tube, which moves the material along the conveyor path. Unlike horizontal screw conveyors, inclined screw conveyors face additional challenges due to the influence of gravity.

The installation angle of an inclined screw conveyor refers to the angle between the conveyor's axis and the horizontal plane. This angle can range from a few degrees to nearly vertical, but there are practical limits that need to be considered.

Factors Affecting the Installation Angle Limit

1. Material Characteristics
   • Particle Size and Shape: Materials with larger particle sizes or irregular shapes may be more difficult to convey at steeper angles. For example, large chunks of wood or rocks may roll back down the conveyor if the angle is too steep. On the other hand, fine powders may flow more easily but can also be more prone to dust generation and clogging.
   • Bulk Density: Dense materials are generally easier to convey at steeper angles as they have more weight to overcome the force of gravity. Lighter materials, such as sawdust or feathers, may require a shallower angle to prevent them from being blown away or sliding back.
   • Moisture Content: Moist materials can be stickier and more difficult to convey, especially at higher angles. Excessive moisture can cause the material to adhere to the screw blade and the trough, reducing the conveyor's efficiency and potentially leading to blockages.
2. Conveyor Design
   • Screw Pitch: The pitch of the screw blade, which is the distance between consecutive threads, affects the conveying capacity and the angle at which the material can be transported. A larger pitch may allow for a steeper installation angle, but it also reduces the filling ratio of the conveyor.
   • Trough Shape and Size: The shape and size of the trough can influence the material flow and the angle limit. A wider trough may provide more space for the material to move, but it also increases the risk of the material spreading out and not being effectively conveyed.
   • Drive System: The power and torque of the drive system are crucial for overcoming the additional resistance caused by the inclined angle. A more powerful drive is required for steeper angles to ensure smooth operation.

Determining the Installation Angle Limit

The installation angle limit of an inclined screw conveyor is typically determined through a combination of theoretical calculations and practical experience. Here are some general guidelines:

1. Shallow Angles (0 - 15 degrees): At shallow angles, the conveyor operates similarly to a horizontal conveyor. The material is mainly moved by the rotation of the screw blade, and the influence of gravity is relatively small. This range is suitable for most materials and is often used when the conveyor needs to cover a long distance with a gentle slope.
2. Moderate Angles (15 - 30 degrees): As the angle increases, the force of gravity becomes more significant, and the conveyor needs to work harder to move the material. The conveying capacity may decrease, and the power consumption may increase. However, many materials can still be conveyed effectively within this range.
3. Steep Angles (30 - 60 degrees): At steeper angles, the conveyor faces greater challenges. The material may tend to slide back down the conveyor, and special design features may be required to ensure proper conveyance. This range is typically used for specific applications where space is limited or where a high elevation change is needed.
4. Vertical Angles (60 - 90 degrees): Conveying materials vertically is the most challenging and requires a specialized design. Vertical screw conveyors use a different principle of operation, relying on the friction between the material and the screw blade to lift the material. The conveying capacity is usually lower, and the power consumption is higher compared to inclined or horizontal conveyors.

Importance of Choosing the Right Installation Angle

Choosing the right installation angle is crucial for the efficient and reliable operation of an inclined screw conveyor. An incorrect angle can lead to several problems, including:

1. Reduced Conveying Capacity: If the angle is too steep, the material may not be able to move smoothly along the conveyor, resulting in a lower conveying capacity. This can lead to production delays and increased costs.
2. Increased Power Consumption: A steeper angle requires more power to overcome the force of gravity, which can increase the energy consumption of the conveyor. This can have a significant impact on the operating costs over time.
3. Material Spillage and Dust Generation: If the angle is too steep, the material may spill out of the conveyor, causing a mess and potentially creating safety hazards. Additionally, the increased movement of the material can generate more dust, which can be harmful to the environment and the health of workers.
4. Premature Wear and Tear: Incorrect installation angles can cause excessive stress on the conveyor components, leading to premature wear and tear. This can result in frequent maintenance and replacement of parts, increasing the overall cost of ownership.

Our Solutions as a Screw Conveyor Supplier

As a leading supplier of Screw Conveyor, we understand the importance of choosing the right installation angle for your specific application. Our team of experienced engineers can provide customized solutions based on your material characteristics, production requirements, and site conditions.

1. Material Analysis: We conduct a detailed analysis of your material to determine its properties, such as particle size, shape, bulk density, and moisture content. This information is used to select the appropriate conveyor design and installation angle.
2. Customized Design: Based on the material analysis and your specific requirements, we design a screw conveyor that is optimized for the installation angle. This includes selecting the appropriate screw pitch, trough shape, and drive system to ensure efficient and reliable operation.
3. Installation and Commissioning: Our team of technicians will install and commission the conveyor on-site, ensuring that it is properly aligned and adjusted. We also provide training to your operators to ensure they understand how to operate and maintain the conveyor correctly.
4. After-Sales Support: We offer comprehensive after-sales support, including maintenance, repair, and spare parts supply. Our goal is to ensure that your conveyor operates at peak performance throughout its service life.

Related Products and Applications

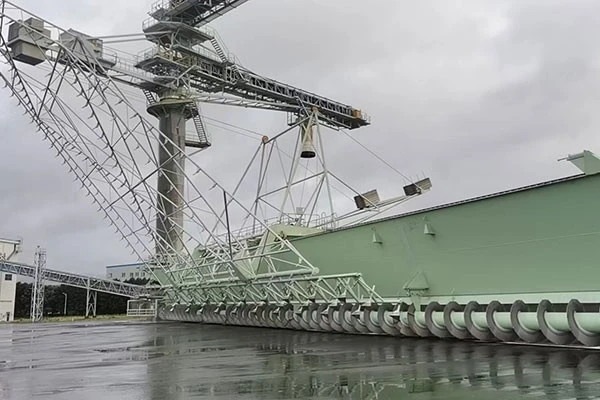

In addition to Screw Conveyor, we also offer a range of related products, such as Stacker For Paper Material and Peeling Machinery Structure. These products are designed to work together to provide a complete solution for your material handling needs.

Our screw conveyors are widely used in various industries, including paper and pulp, forestry, mining, and food processing. They are suitable for transporting a wide range of materials, such as wood chips, sawdust, grains, and chemicals.

Contact Us for a Quote

If you are interested in our Screw Conveyor or other related products, please contact us for a quote. Our sales team will be happy to discuss your requirements and provide you with a customized solution. We look forward to working with you to meet your material handling needs.

References

• CEMA. Conveyor Equipment Handbook.
• ASME. Standards for Conveyor Design and Installation.
• Various research papers on screw conveyor design and operation.
