Can a shaft flange be used in a vacuum environment?

Can a shaft flange be used in a vacuum environment? This is a question that often arises in various industrial applications, especially those in high - tech and specialized fields. As a shaft flange supplier, we have in - depth knowledge and experience regarding the usage of shaft flanges in different environments, including vacuum conditions.

In modern industries, the demand for operating in vacuum environments has been on the rise. Vacuum technology is widely used in semiconductor manufacturing, space research, and some chemical processes. A shaft flange is a crucial component in many mechanical systems. It is used to connect shafts, transfer torque, and ensure the alignment and stability of the system. However, when it comes to using a shaft flange in a vacuum environment, several factors need to be considered.

1. Material Compatibility

The first and perhaps the most important factor is the material of the shaft flange. In a vacuum, outgassing is a significant concern. Outgassing refers to the release of gases from the surface or interior of a material when it is placed in a low - pressure environment. This can contaminate the vacuum chamber, affect the performance of sensitive equipment, and cause issues in the overall process.

For example, some common plastics and rubbers may outgas a large amount of volatile organic compounds (VOCs) in a vacuum. Therefore, materials such as stainless steel, titanium, and certain types of ceramics are often preferred for shaft flanges in vacuum applications. These materials have low outgassing rates and are more resistant to the extreme conditions of a vacuum. Manufacturers need to carefully select the appropriate material based on the specific requirements of the vacuum environment, such as the level of vacuum (e.g., high - vacuum or ultra - high - vacuum) and the nature of the process taking place in the chamber.

2. Sealing Performance

Proper sealing is essential when using a shaft flange in a vacuum environment. A leak in the shaft flange connection can lead to the loss of vacuum, which can disrupt the entire process. There are different types of seals used for shaft flanges in vacuum applications.

One common type is the elastomeric O - ring seal. O - rings are made of materials like Viton or silicone. These materials have relatively good sealing properties and can withstand a certain degree of vacuum. However, they also have limitations. For example, they may degrade over time, especially in high - temperature or aggressive chemical environments often found in some vacuum processes.

Metal seals are another option. They offer better sealing performance in high - vacuum and ultra - high - vacuum applications. Some metal seals are designed to be compressible, creating a tight seal between the flange surfaces. However, they require more precise machining and installation to ensure proper sealing.

3. Thermal Expansion

In a vacuum environment, temperature variations can be significant. Different materials have different coefficients of thermal expansion. When a shaft flange is exposed to temperature changes, the difference in thermal expansion between the flange material and the connected components can cause stress and deformation.

For instance, if the shaft flange is made of a material with a high coefficient of thermal expansion and is connected to a component with a low coefficient of thermal expansion, as the temperature changes, the flange may expand or contract at a different rate than the component. This can lead to misalignment, loosening of the connection, or even damage to the flange or the connected parts. Therefore, it is crucial to choose materials with compatible thermal expansion coefficients and design the shaft flange and the connection system to accommodate thermal changes.

4. Surface Finish

The surface finish of the shaft flange also plays an important role in its performance in a vacuum environment. A rough surface can trap gases and particles, which can then be released during the vacuum process. A smooth surface finish reduces the surface area available for gas adsorption and helps to minimize outgassing.

Manufacturers usually use precision machining techniques to achieve a high - quality surface finish on the shaft flange. For critical vacuum applications, additional surface treatments such as polishing or coating may be applied to further improve the surface properties and reduce outgassing.

Shaft Flanges in Specific Vacuum Applications

Semiconductor Manufacturing

In semiconductor manufacturing, vacuum is used in processes such as chemical vapor deposition (CVD), physical vapor deposition (PVD), and etching. Shaft flanges are used to connect shafts in equipment like wafer handlers and vacuum pumps. The high - purity requirements in semiconductor manufacturing demand that the shaft flanges have extremely low outgassing rates to prevent contamination of the wafers. Moreover, the seals need to be reliable to maintain the high - vacuum level required for these processes.

Space Research

Space is essentially a vacuum environment. Shaft flanges are used in various space - related equipment such as satellite mechanisms and space telescopes. In space, the temperature can range from extremely cold to very hot, and the shaft flanges need to withstand these temperature variations without losing their functionality. Additionally, the materials used in space applications need to be lightweight and radiation - resistant.

Chemical Processes

Some chemical processes are carried out in vacuum chambers to prevent unwanted reactions with air or to facilitate the evaporation of solvents. Shaft flanges in these applications need to be resistant to the chemicals used in the process. For example, if the process involves corrosive chemicals, the shaft flange material should be chosen accordingly to prevent corrosion and ensure long - term performance.

Our Offerings as a Shaft Flange Supplier

As a shaft flange supplier, we understand the unique requirements of using shaft flanges in vacuum environments. We offer a wide range of shaft flanges made from high - quality materials such as stainless steel, titanium, and ceramics. Our products are designed to have low outgassing rates, excellent sealing performance, and compatibility with different thermal expansion coefficients.

We also provide customization services. We can work closely with our customers to design and manufacture shaft flanges that meet their specific needs, whether it is for a particular vacuum level, temperature range, or chemical environment. Our team of experts has extensive knowledge and experience in vacuum technology and mechanical engineering, ensuring that our products are of the highest quality and reliability.

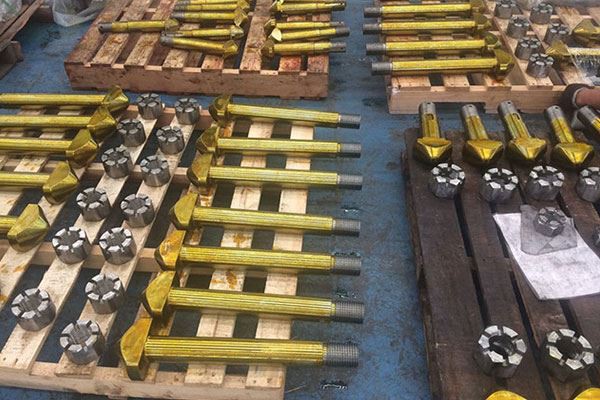

In addition to shaft flanges, we also offer related products such as Staddle Carrier Structure, Twist Lock, and Buried Scraper Type Ship Unloader Structure. These products are also designed to meet the high - quality standards and specific requirements of different industries.

Conclusion

In conclusion, a shaft flange can be used in a vacuum environment, but it requires careful consideration of factors such as material compatibility, sealing performance, thermal expansion, and surface finish. As a shaft flange supplier, we are committed to providing high - quality products and solutions for our customers in vacuum applications. If you are in need of shaft flanges or related products for your vacuum - based projects, we invite you to contact us for procurement and further discussions. We look forward to working with you to meet your specific needs and contribute to the success of your projects.
